CUSTOM DETACHABLE SUPPRESSORS & SCRC EXCLUSIVES

NOTE: Prices quoted do not include Federal Transfer Tax or any applicable state sales tax


STEALTH

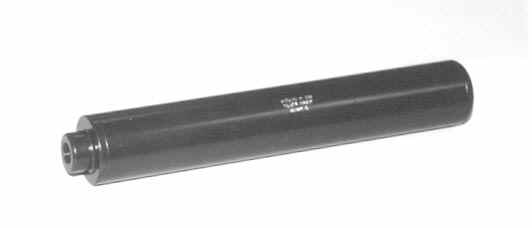

Custom built detachable suppressor for rifle or pistol, starting at $525 retail

STEALTH: We can custom build detachable pistol caliber suppressors in sizes from .22LR to .45 ACP, and rifle caliber suppressors up to .358 Winchester, to meet your needs or specifications.  Among our options are: take-down units, telescoping (reflex) units, collapsible units, internally threaded attachment points, externally threaded attachment points, slip-on/clamp-on attachment points (for unthreaded barrels), concentric chambers, eccentric chambers (Maxim style), integral free-floating chambers (a.k.a. recoil boosters for recoil operated pistols), wet environment, dry environment, carbon steel, stainless steel, aluminum, titanium, solid machined body and parts, unitized construction, bead blasted finish, optional gray or matte black all-weather DH (Damn Hard) molycoat external finish (custom finishes are available for an extra charge).  We also offer barrel threading.  Contact us for details.

Note: Our optional DH finish is available on our suppressors.  Visit the OPTIONS page for patterns, colors, and pricing.



CUSTOM INTEGRAL SUPPRESSORS

If you have a firearm or barrel you want fitted with an integral suppressor, please contact us to discuss the feasibility of the project.  Here are a few examples.

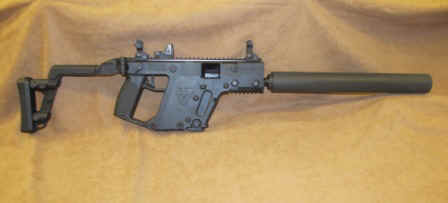

Integrally suppressed 45 ACP KRISS carbine

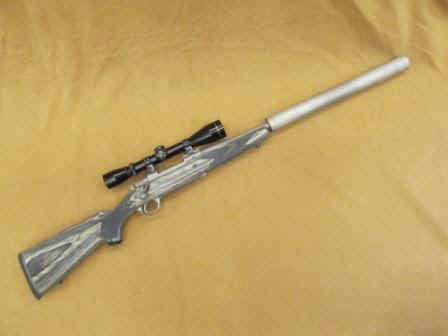

300 RCM Ruger Hawkeye rifle fitted with a telescoping (reflex) suppressor

Custom 9.jpg (22639 bytes)

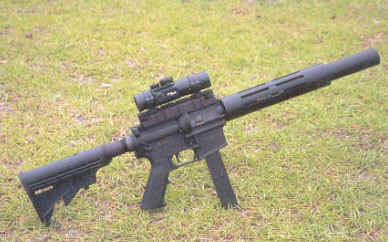

Custom built 9mm AR short barrel rifle fitted with a detachable suppressor

TRS coyote kill.jpg (190568 bytes)

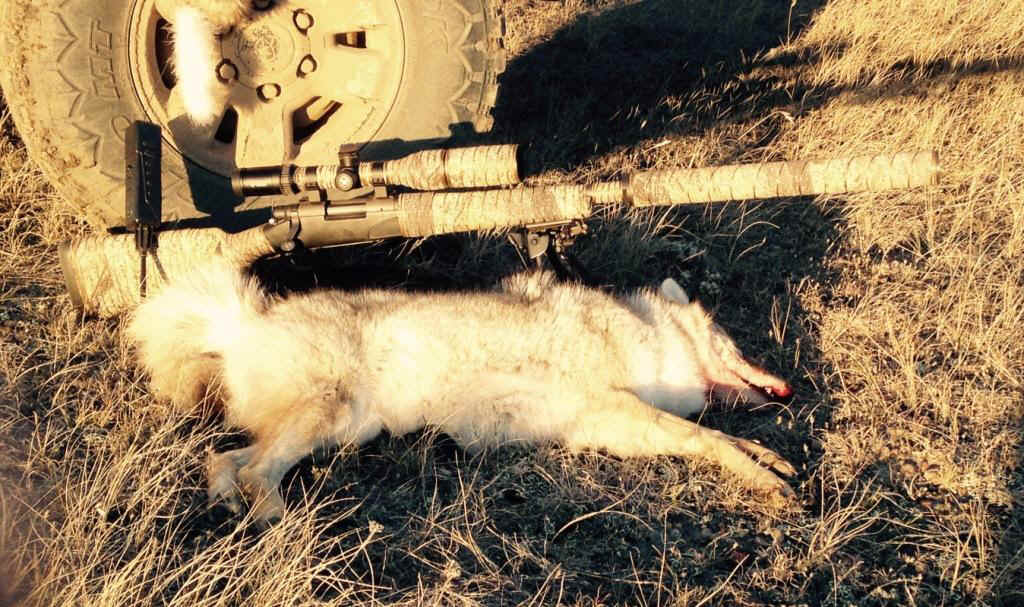

17 Fireball Remington 700 fitted with a telescoping (reflex) suppressor alongside its first coyote kill.

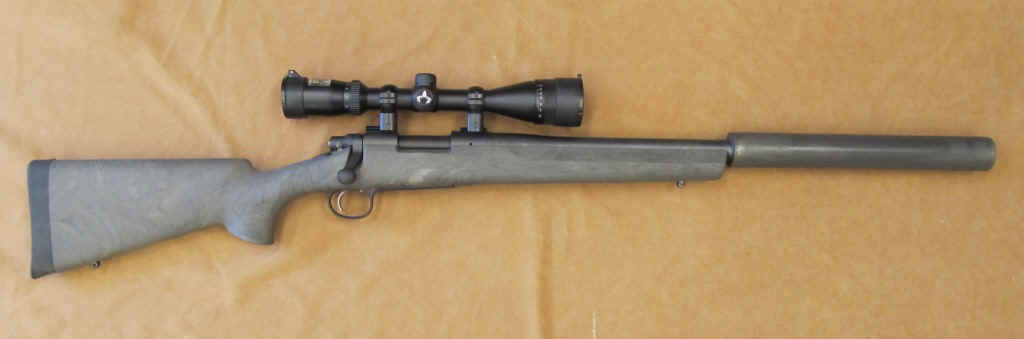

Remington 700 "Ghillie" pattern rifle in 300 Blackout with custom matching finish on the telescoping (reflex) suppressor.  The suppressor is made from titanium, stainless steel, and aluminum, bringing its total weight to 32.2 ounces.  Overall length of the barreled suppressor is 24 inches.

We are now the exclusive distributor of the world renowned SCRC suppressors

designed by the legendary 'Doc' Dater and built by the dean of suppressor manufacturers, Tim Bixler.

Because of the distributor arrangement, there are no special wholesale/retail prices, but shipping to an instate dealer in the continental USA is included.  We also have spare takedown tools for $20, manuals for $5, and some spare parts (please contact us for pricing and availability).

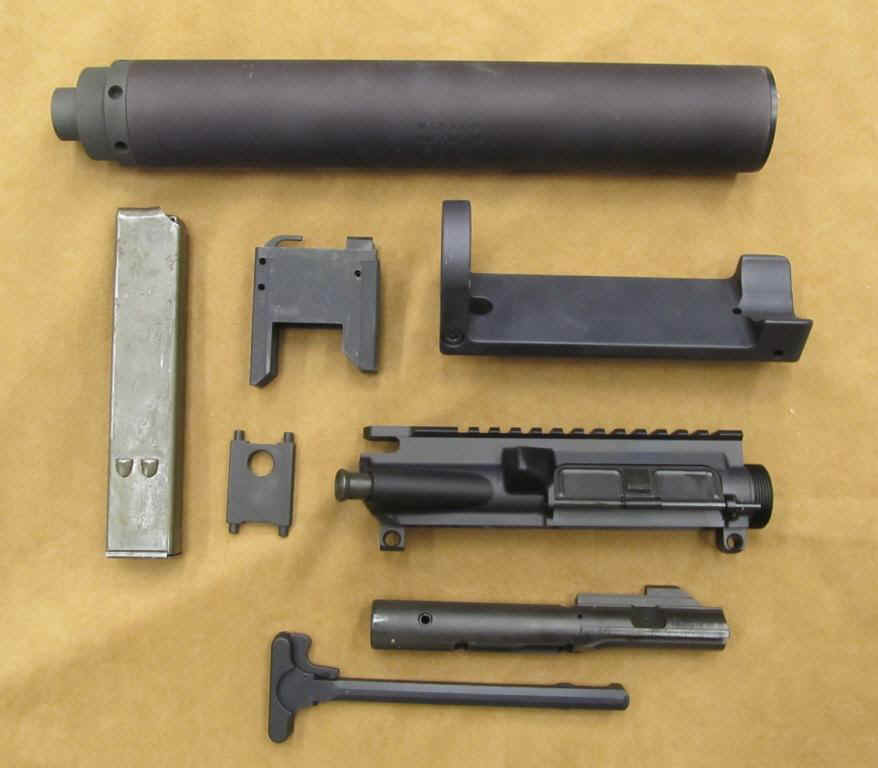

The Mk25 9mm suppressor with conversion kit includes a suppressor with an enclosed barrel, Picatinny rail support, takedown tool, manual,  magazine well adapter, modified UZI magazine, complete flat top upper unit, 9mm bolt, and charging handle.

$1600.00

SOLD OUT

MK25AR9 .JPG (56957 bytes)

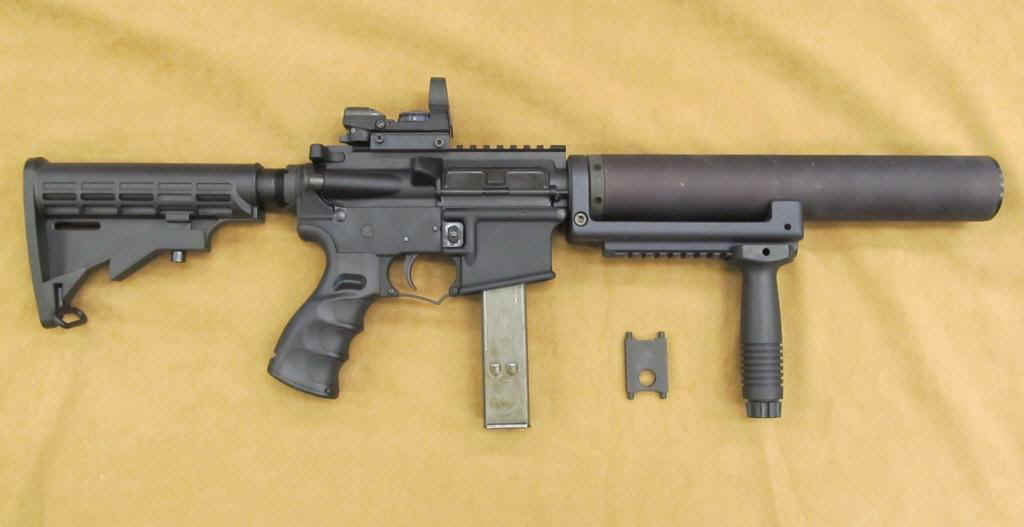

Example of the Mk25 9mm setup on an AR machine gun or short barrel rifle (vertical grip not included).  It can be fitted to an AR pistol as well.

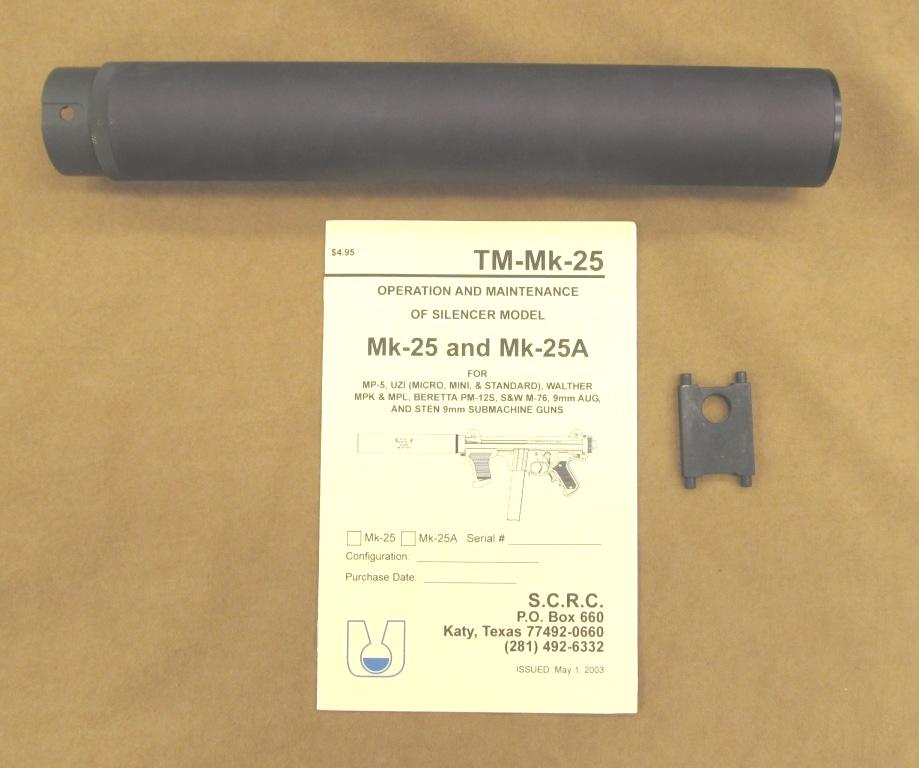

This Mk-25 9mm suppressor is for the Beretta PM12S submachine gun, and comes with a manual and takedown tool.

SOLD OUT

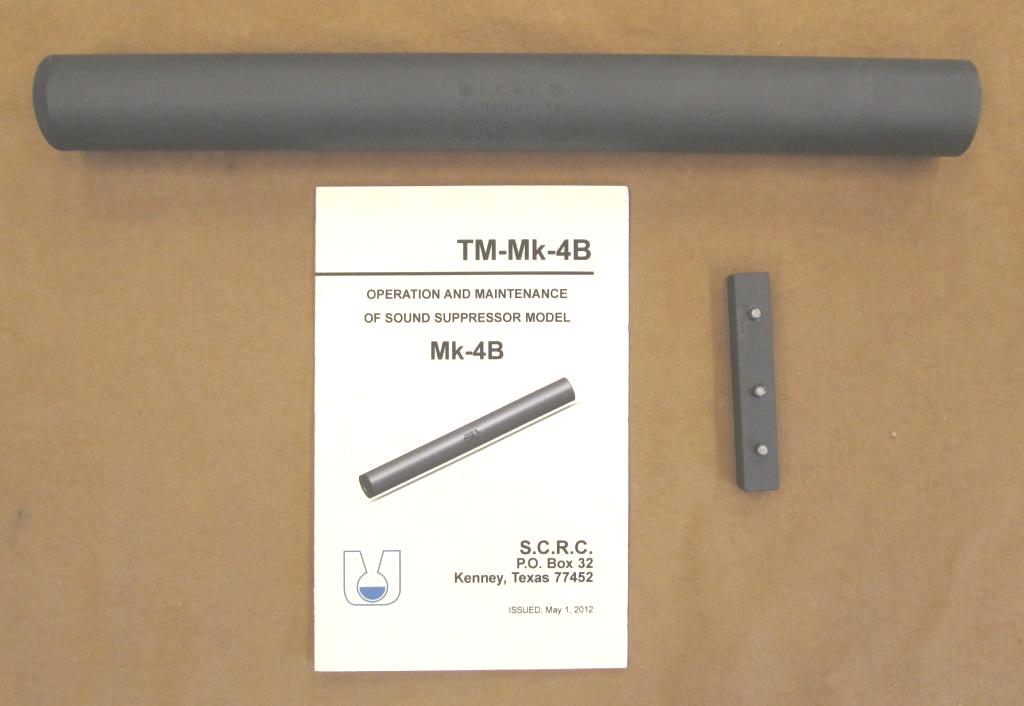

The Mk-4B is a 7.62 NATO suppressor designed exclusively for the Steyr SSG P-IV sniper rifle, and comes with a takedown tool and manual.  This is a telescoping (reflex) setup that replaces the rifles special purpose flash hider.

SOLD OUT

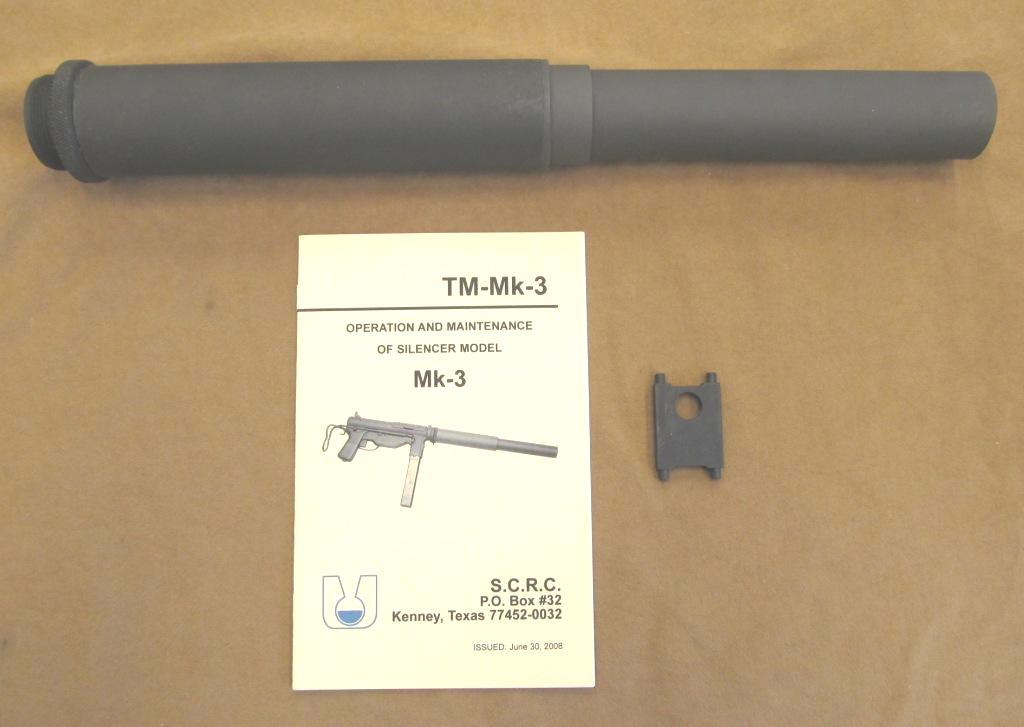

Patterned after the WWII OSS M3 45ACP "Greasegun" silencer, the Mk-3 is an improvement of the original design internally, while outwardly maintaining a period correct appearance.  The barrel is integral with the tube and comes with a manual and takedown tool.

(SOLD OUT)


Patterned after the WWII OSS 9mm conversion of the M3 "Greasegun" silencer, the Mk-3 9mm is an improvement on the original design internally, while outwardly maintaining a period correct appearance.  The barrel is integral with the tube, and comes with a manual and takedown tool.   Standard 9mm STEN magazines will work with it.  The only other parts needed are a magazine well adapter and 9mm M3 or M3A1 bolt.  These items are available from Indianapolis Ordnance (https://www.indianapolisordnance.com).

(SOLD OUT)

MEASURING THE SOUNDS OF SILENCE

WARNING!  Determining the effectiveness of a suppressor is one part science, one part art, and one part PR (or BS, depending upon your viewpoint).  If math bores you or gives you a headache, then you may want to skip the next few paragraphs.  If you are glutton for punishment, or really want to understand some of the voodoo and incantations associated with sound pressure measurements, then read on.  For those of you with an advanced appreciation of mathematics and physics, the author must apologize in advance for keeping the following explanations simple and incomplete. Now for the hard part.

The standard unit of measurement for sound pressure level (loudness) is the decibel (dB, or 1/10th of a bel).  The term bel, and by extension, the decibel, was created in the 1920s by engineers at the Bell Telephone Laboratories, and named in honor of the father of the telephone, Alexander Graham Bell.  Essentially, it was the renaming of a unit of measure previously developed and refined over the years for the purpose of determining the lowest audible reduction in sound the average human ear could detect through a telephone line.  The longer a telephone line is, and the more switches the signal passed through, the greater the detectable loss of sound, so the decibel proved to be a useful measurement for determining the efficiency of lines and switches, as well as the power levels required to keep a sound reasonably audible.  As a result, decibels are used in other branches of science, most notably electronics, but for our purposes this discussion is limited to its application in acoustics.

The decibel is a representation of the ratio of the intensity of a sound to a stated baseline reference, and therefore can be subjective.  That is, whatever sound is used to form the baseline reference, also determines the resulting decibel readings.  If a whisper forms the baseline reference, the dB reading for a shotgun muzzle blast will be higher than if a Tarzan yell forms the baseline reference.  Fortunately, a standard sound pressure level of .0002 microbar (or 20 micropascals if you prefer), is the accepted standard for 0 dB.  A "bar" approximates the atmospheric pressure on Earth at sea level, and a microbar is one millionth of a bar.  Micropascals are equivalent, but much smaller units of measure (one bar equals 100 billion micropascals).  Although the decibel has never been standardized by the International Committee for Weights and Measures, it remains in common use by the manufacturers of sound measuring devices.  All else being equal, differences in any readings obtained by each device most likely can be attributed to calibration errors or manufacturing quality variances.

Because it is a ratio, the decibel is expressed as a logarithm.  You may recall from grade school math that a logarithm is represented as an exponent (the raised number) of another number (called the base), such as in the following example where the base number is 2.

22 = 2×2 = 4      23 = 2×2×2 = 8      24 = 2×2×2×2 = 16     25 = 2×2×2×2×2 = 32...........210 = 2×2×2×2×2×2×2×2×2×2 = 1024

In the preceding example, 22 is the logarithm for the value 4, just as 210 is the logarithm for the value 1024.  Note the great difference in actual values these two logarithms represent.  The last one is not simply five times larger than the first one, it is 512 times larger.  So as a logarithm increases arithmetically (2, 3, 4, 5...10), its value grows exponentially (in this example, 4, 8, 16, 32...1024).

If we use a larger base value, such as 10 (which just happens to be the base value of bels and decibels), the differences are far more dramatic.

102 = 10×10 = 100      103 = 10×10×10 = 1000      104 = 10×10×10×10 = 10,000     105 = 10×10×10×10×10 = 100,000...........1010 = 10×10×10×10×10×10×10×10×10×10 = 10,000,000,000

The following table is an example comparing dB levels from 0 to 100 with their equivalent values expressed as power ratios and amplitude ratios (measure of proportional change in sound wave pressure).

dB power ratio amplitude ratio (proportional change in sound wave pressure)
100 10,000,000,000x 100,000
90 1,000,000,000x 31620
80 100,000,000x 10,000
70 10,000,000x 3162
60 1,000,000x 1000
50 100,000x 316.2
40 10,000x 100
30 1000x 31.62
20 100x 10
10 10x 3.162
0 1x 1

Since firearms create sound pressures well above 100 dB, the raw numbers would become quite huge if the dB scale wasn't applied.   The threshold for permanent hearing damage is generally considered to be 120 dB (one trillion times greater than 0 dB), so dropping a firearm's report below this number is sometimes seen as the Holy Grail of sound suppressors.  Of course, it isn't really all that simple.  Other factors come into play, such as the frequency range involved and the duration of the sound pressure.  The latter is of importance because one sound pressure may be perceived as being louder than another simply because it has a greater duration, regardless of the actual dB reading.  A 135 dB sound that lasts a microsecond is likely to be perceived as quieter than a 130 dB sound that lasts a half second.  Interpreting dB values can be further confusing because, even though a single dB number increase corresponds to a logarithmic increase, at the extreme pressure ranges involved,  the human ear is not always able to detect these changes.  On average, a firearm's sound pressure must drop 6 dB before the change is detected by the human ear.  Even if the subjective human factor is eliminated, test results by "impartial" scientific analysis can be affected by many factors, including test location (indoor range, wooded area, open field), ambient temperature, ammunition selection, type of firearm, barrel length, placement of the microphone, or brand, model, and calibration of the acoustic measuring device.  In the final analysis, raw data, testimonials, recorded video, or audio sound demonstrations are not conclusive evidence of suppressor performance.  But short of being there and shooting the suppressor yourself, they may be all you have to go on.
